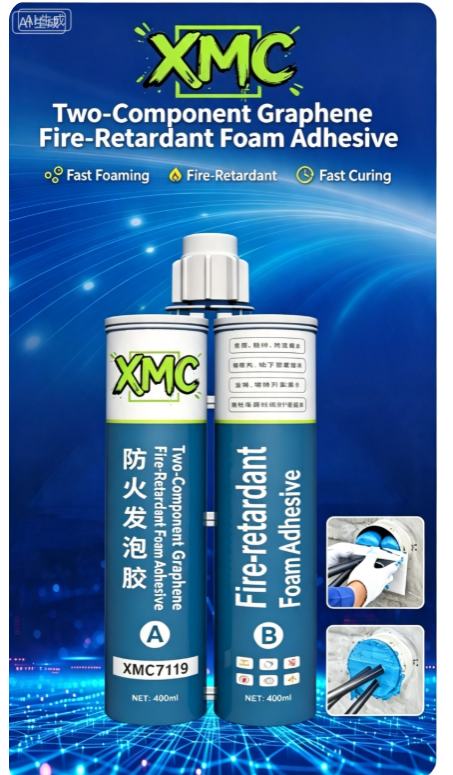

In construction, automotive, electronics, and industrial maintenance, balancing fire safety with material performance remains a core challenge for engineers. Traditional foams often fail to combine high expansion, strong adhesion, and reliable flame retardancy. Now, Shanghai XMC New Material Technology Co., Ltd. introduces a breakthrough solution: our Two‑Component Graphene Fireproof Foaming Adhesive XMC7119, which integrates graphene‑enhanced technology with a polyurethane‑based reactive foaming system.
The addition of graphene is not a simple additive. Studies show that graphene‑based nanomaterials significantly improve the thermal stability of polyurethane foams and delay ignition. Our product leverages this principle: while retaining the outstanding thermal insulation and mechanical properties of polyurethane foam, it greatly enhances flame retardancy and smoke suppression. It achieves a high industry‑standard flame‑retardant grade, is self‑extinguishing when the flame is removed, and produces no toxic gases during combustion – making it ideal for high‑safety environments such as high‑rise buildings, hospitals, subways, and precision equipment rooms.
| Parameter | Value / Characteristic |
|---|---|
| Mixing ratio (A:B) | 1:1 |
| Working time (25°C) | 20–30 s |
| Foaming time (25°C) | 20–30 s |
| Full curing time | 8–10 min (temperature‑dependent) |
| Expansion ratio | 8‑12 times (volume expansion) |
| Cured density | 50–70 kg/m³ |
| Service temperature range | –40°C to +120°C |
| Adhesive strength (on metal) | ≥2.5 MPa |
The fast working window and 8‑12× expansion enable efficient filling of complex cavities. The low cured density of only 50–70 kg/m³ supports lightweight design, while the wide temperature tolerance from –40°C to +120°C ensures reliable performance in extreme conditions.
Construction: Ideal for wall insulation, pipe sealing, cable trench fire stopping, and gap filling. Its closed‑cell structure provides sound insulation, thermal insulation, and waterproof sealing – a perfect choice for building fire protection.
Automotive manufacturing: Suitable for cavity filling, noise/vibration damping, and lightweight structural design. With the rapid growth of new energy vehicles, polyurethane foam usage per vehicle has increased by 50% compared to conventional cars, and market demand is growing at ~15% annually.
Electronics & appliances: Used for component fixing and waterproof sealing, offering reliable protection for precision devices.
Industrial maintenance: Quick repair and mold filling significantly reduce downtime and boost maintenance efficiency.

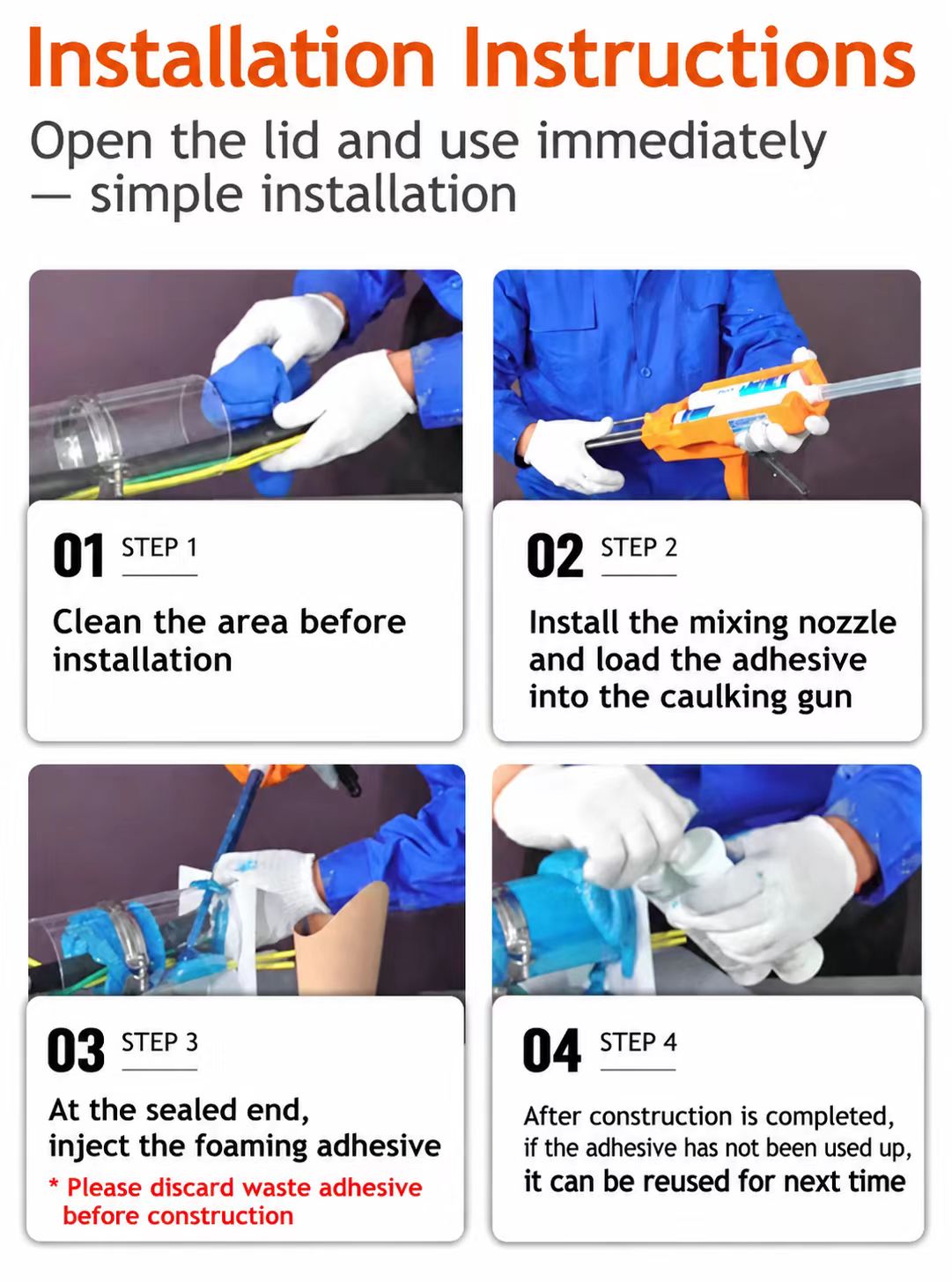

The 1:1 two‑component system works with a dedicated mixing nozzle and a two‑component dispensing gun. Simply clean the substrate (free of oil and dust), inject the mixed material within 20–30 seconds, and allow 8–10 minutes for full curing. Natural curing at 25°C is standard; higher temperature and humidity will accelerate the reaction. Recommended application conditions: 10°C–35°C ambient temperature and humidity ≤80%.
Shanghai XMC New Material Technology Co., Ltd. offers a 12‑month shelf life (unopened original packaging). Store in a dry, dark place at 5°C–25°C, away from heat sources. Each component (A and B) is available in 200 ml cartridges, facilitating convenient transport and on‑site handling.
Let the power of graphene protect every critical gap.
For more product information or sample requests, please contact Shanghai XMC New Material Technology Co., Ltd.
